Product Description

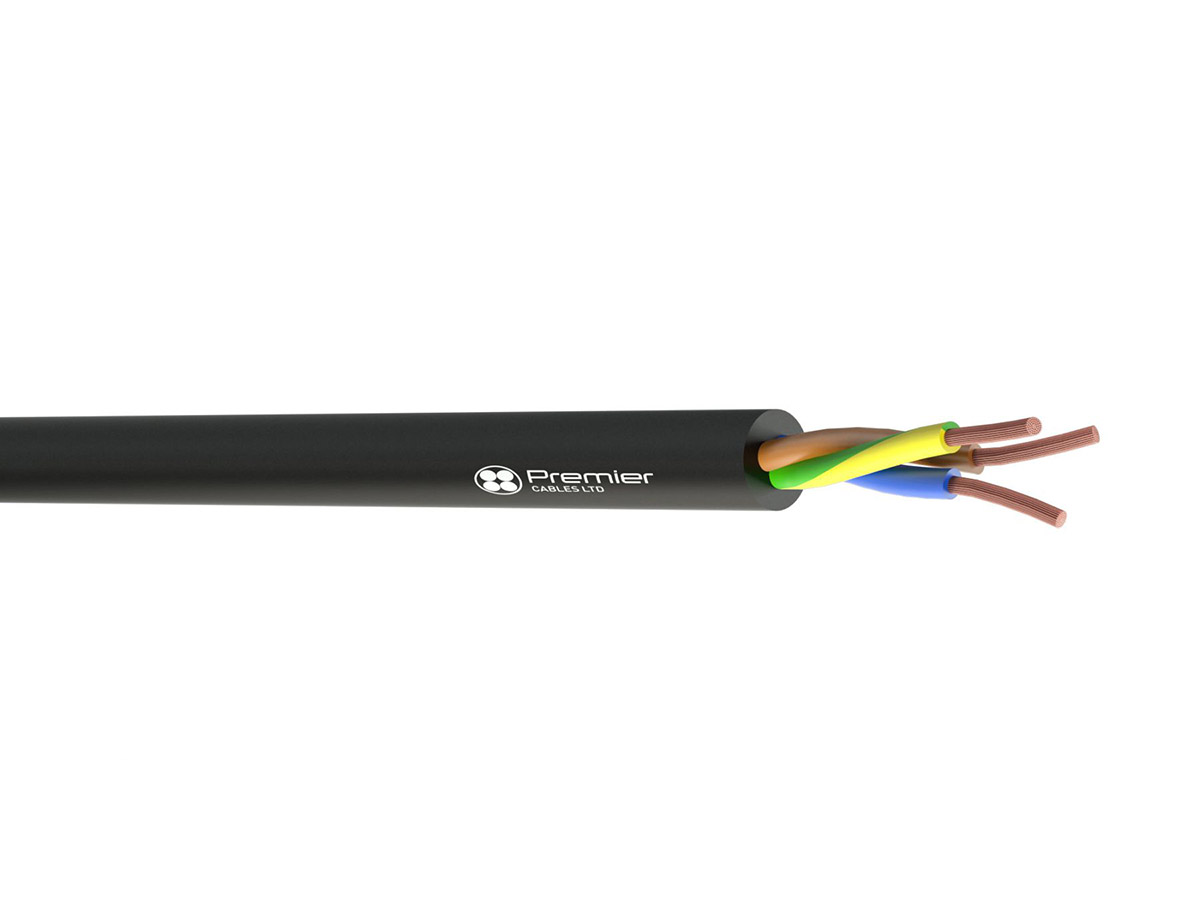

H05VV-F BS EN 50525-2-11
FLEXIBLE CABLE
Technical Specification
| Conductor Material |
Copper, bare |
|---|---|
| Conductor Class |
Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core Insulation |
PVC |
| Outer Sheath |
PVC |
| Sheath Colour |
Black or White |
| Rated Voltage [V] |
300 / 500 |
| min bending radius fixed [x d] |
6 |
| min bending radius moved [x d] |
15 |
| working temp fixed min/max [°C] |
-50°C to +60°C |
| working temp. moved min/max [°C] |
-5°C to +60°C |
