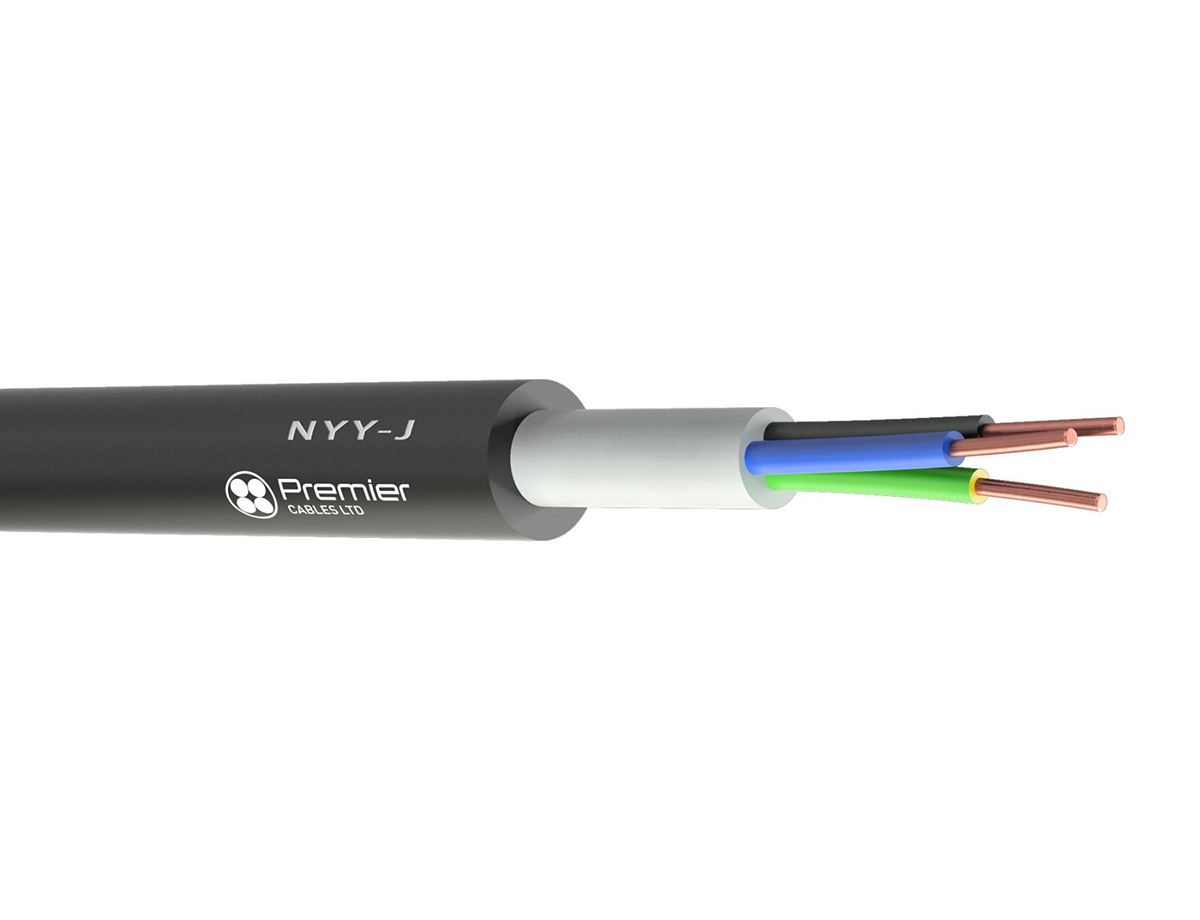

Product Description
- Power and Control Cable, suitable for use both internally or externally.
- Primarily designed for fixed external wiring for energy supply.
- Suitable for direct burial.
- IEC 60502-1 BS EN/IEC 60332-1-2
Technical Specification
| Conductor |
Class 2 stranded copper conductor according to BS EN 60228 (previously BS 6360) |
|---|---|
| Insulation |
PVC (Polyvinyl Chloride) |
| Sheath |
PVC (Polyvinyl Chloride) |
| Rated Voltage [V] |
600/1000 |
| working temp fixed min/max [°C] |
-25°C to +90°C |
| Minimum Bending Radius |
12 x overall diameter |
| Core Identification |
2 core: Blue Brown, 3 core: Brown Black Grey, 4 core: Brown Blue Black Grey, 5 core: Green/Yellow Brown Black Grey Blue |
