Product Description
Signal transmission cable for electronic devices, in computer systems or process control.

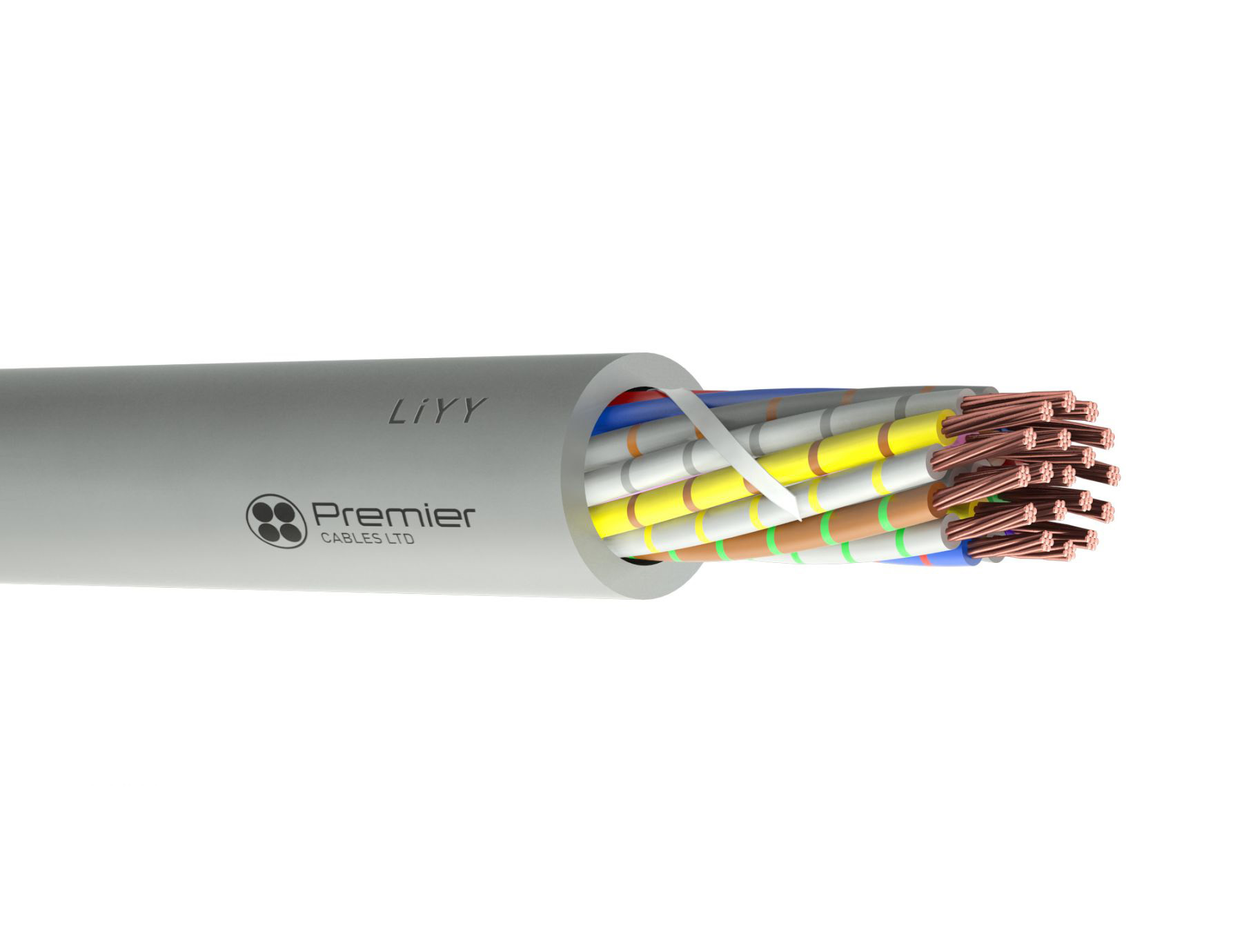

LiYY Control Flexible Cable
Signal transmission cable for electronic devices, in computer systems or process control
Technical Specification
| Conductor Material |
Copper, bare |
|---|---|
| Conductor Class |
Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core Insulation |
PVC |
| Core Identification |
1,0 to 10 mm² : black cores with continuous figure imprint in white, Cross sections from 0,14 to 0,75 mm² coloured cores acc. to DIN 47100 |
| Screen |
Tinned copper wire braid |
| Stranding |
Cores twisted in layers |
| Outer Sheath |
PVC |
| Sheath Colour |
Grey, RAL 7001 |
| Rated Voltage [V] |
300 / 500 |
| Testing Voltage [V] |
1200 / 1500 |
| Insulation Resistance |
> 20 MΩ x k |
| Current-Carrying Capacity |
DIN VDE 0295 (see technical guidelines) |
| min bending radius fixed [x d] |
> 20mm ∅: 10, bis 12mm ∅: 5 x d, bis 20mm ∅: 7.5 x d |
| min bending radius moved [x d] |
> 20mm ∅: 20, bis 12mm ∅: 10 x d, bis 20mm ∅: 15 x d |
| working temp fixed min/max [°C] |
-30°C up to +80 |
| working temp. moved min/max [°C] |
-5°C up to +70 |
| temp at conductor max |
+70°C in operation + 150°C in case of short-circuit |
| Burning Behaviour |
IEC 60332-1: self-extinguishing and flame-retardant |
| Temperature Moved |
-5° C to 70° C |
| Temperature Unmoved |
-40° C to 80° C |
