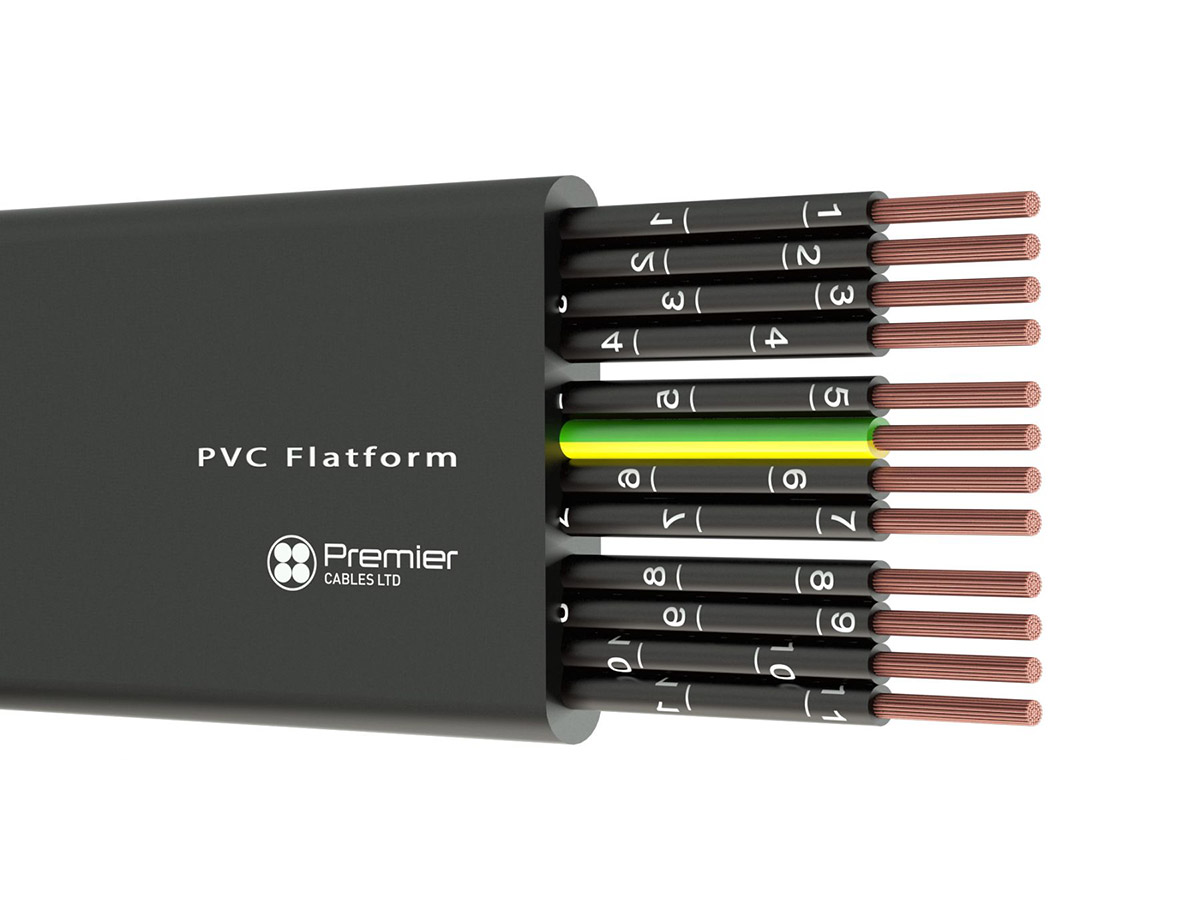

Product Description
Technical Specification
| Conductor Material |
Copper, bare |
|---|---|
| Conductor Class |
Class 5 |
| Core Insulation |
PVC |
| Core Identification |
6 cores and more black with printed,consecutive number coding, Up to 5 cores colour coded in accordance,to VDE 0293 |
| Stranding |
Cores side by side |
| Outer Sheath |
PVC |
| Sheath Colour |
Black |
| Rated Voltage [V] |
400 / 750 |
| Testing Voltage [V] |
2500 |
| Current-Carrying Capacity |
DIN VDE (see technical guidelines) |
| min bending radius fixed [x d] |
DIN VDE 0298 part 3 |
| min bending radius moved [x d] |
DIN VDE 0298 part 3 |
| working temp. moved min/max [°C] |
-10°C up to +60 |
| working temp fixed min/max [°C] |
30°C up to +60 |
| temp at conductor max |
+70 °C |
| Burning Behaviour |
IEC 60332-1: self-extinguishing and flame-retardant |
| Temperature Moved |
-10° C to 60° C |
| Temperature Unmoved |
-30° C to 60° C |
