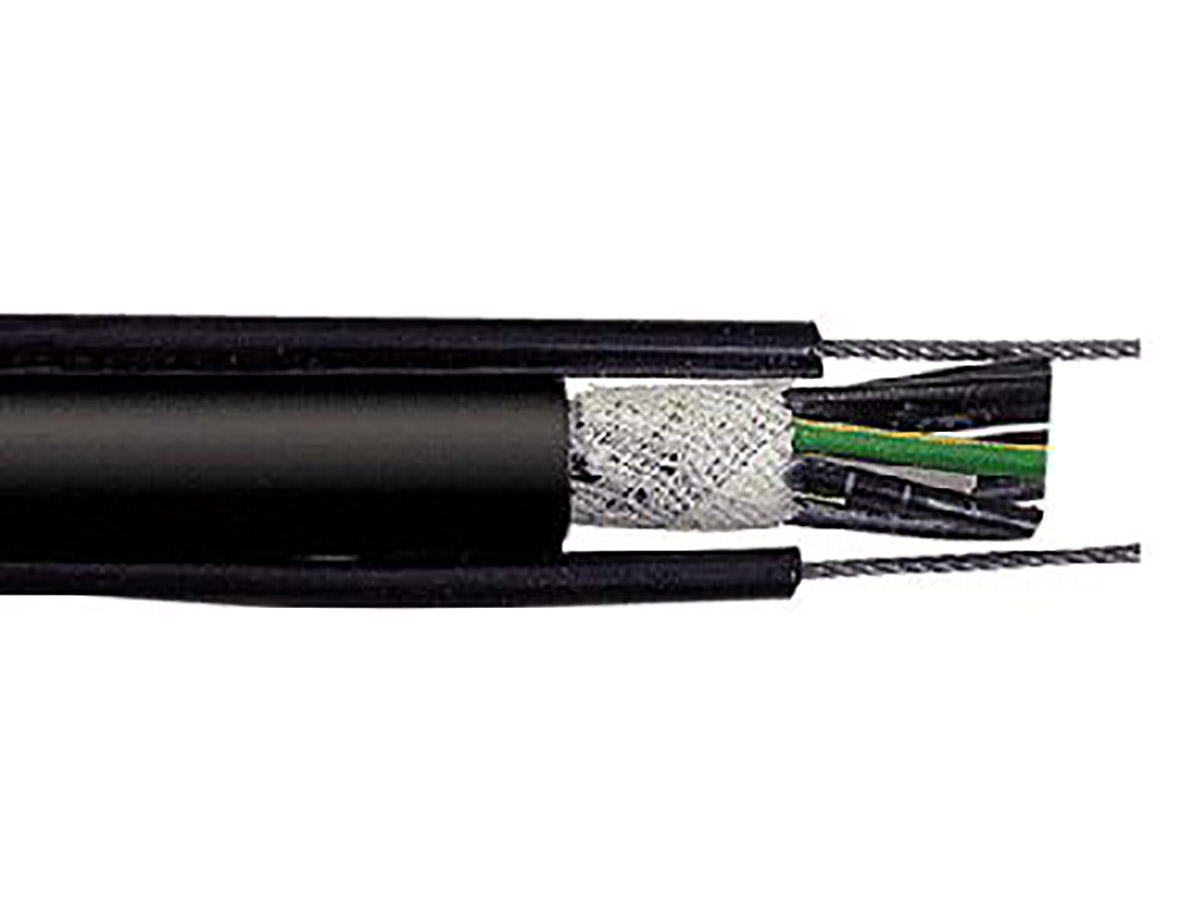

Product Description
Technical Specification
| Conductor Material |
Copper |
|---|---|
| Conductor Class |
Class 5 |
| Core Insulation |
PVC |
| Core Identification |
Core colours black with white figure imprint |
| Stranding |
Cores twisted |
| Outer Sheath |
Special weather resistant, cold-flexible PVC compound |
| Sheath Colour |
Black |
| Support Element |
Twin steel parallel |
| Rated Voltage [V] |
300 / 500 |
| Testing Voltage [V] |
3000 |
| working temp. moved min/max [°C] |
-15°C up to +70 |
| working temp fixed min/max [°C] |
-40°C up to +70°C |
| temp at conductor max |
+70°C in operation + 150°C in case of short-circuit |
| Burning Behaviour |
DIN VDE 0482 and IEC 60332-1: flame-retardant and self-extinguishing |
| Temperature Moved |
-15° C to 70° C |
