Product Description
Control Cables are flexible in design and application. Examples include control,signalling, measurement, motor and robotics.

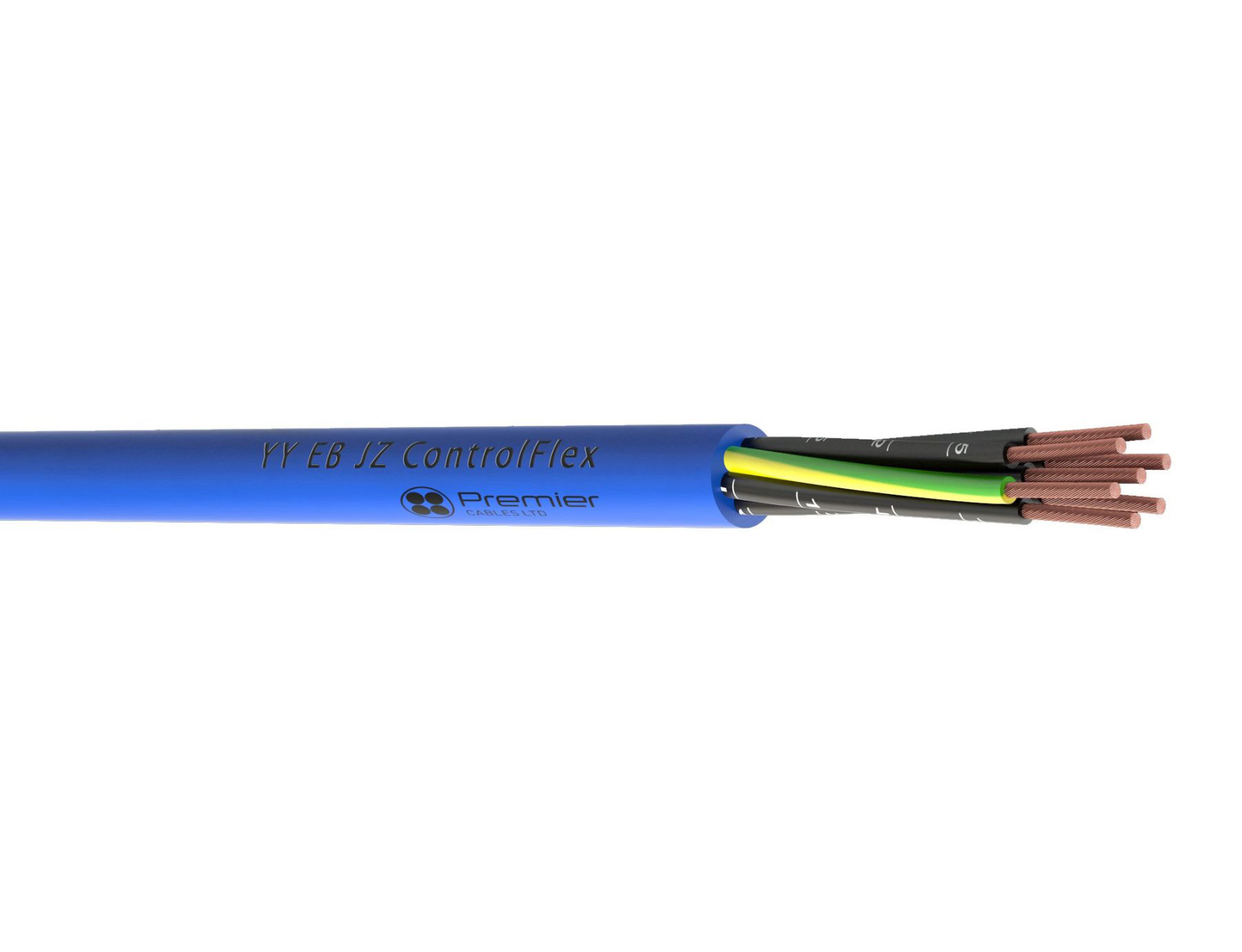

EB YY Control flexible cable
Control Cables are flexible in design and application. Examples include control,signalling, measurement, motor and robotics.
Technical Specification
| Conductor Material |
Copper, bare |
|---|---|
| Conductor Class |
Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core Insulation |
PVC |
| Core Identification |
Acc. to DIN VDE 0293 black cores with white numerals |
| Stranding |
Cores twisted in layers |
| Outer Sheath |
PVC |
| Sheath Colour |
Blue |
| Rated Voltage [V] |
300 / 500 |
| Testing Voltage [V] |
4000 |
| Insulation Resistance |
> 20 MΩ x k |
| Current-Carrying Capacity |
DIN VDE (see technical guidelines) |
| min bending radius fixed [x d] |
4 |
| min bending radius moved [x d] |
15 |
| working temp fixed min/max [°C] |
-40°C up to +80 |
| working temp. moved min/max [°C] |
-5°C up to +70 |
| temp at conductor max |
+70°C in operation + 150°C in case of short-circuit |
