Product Description

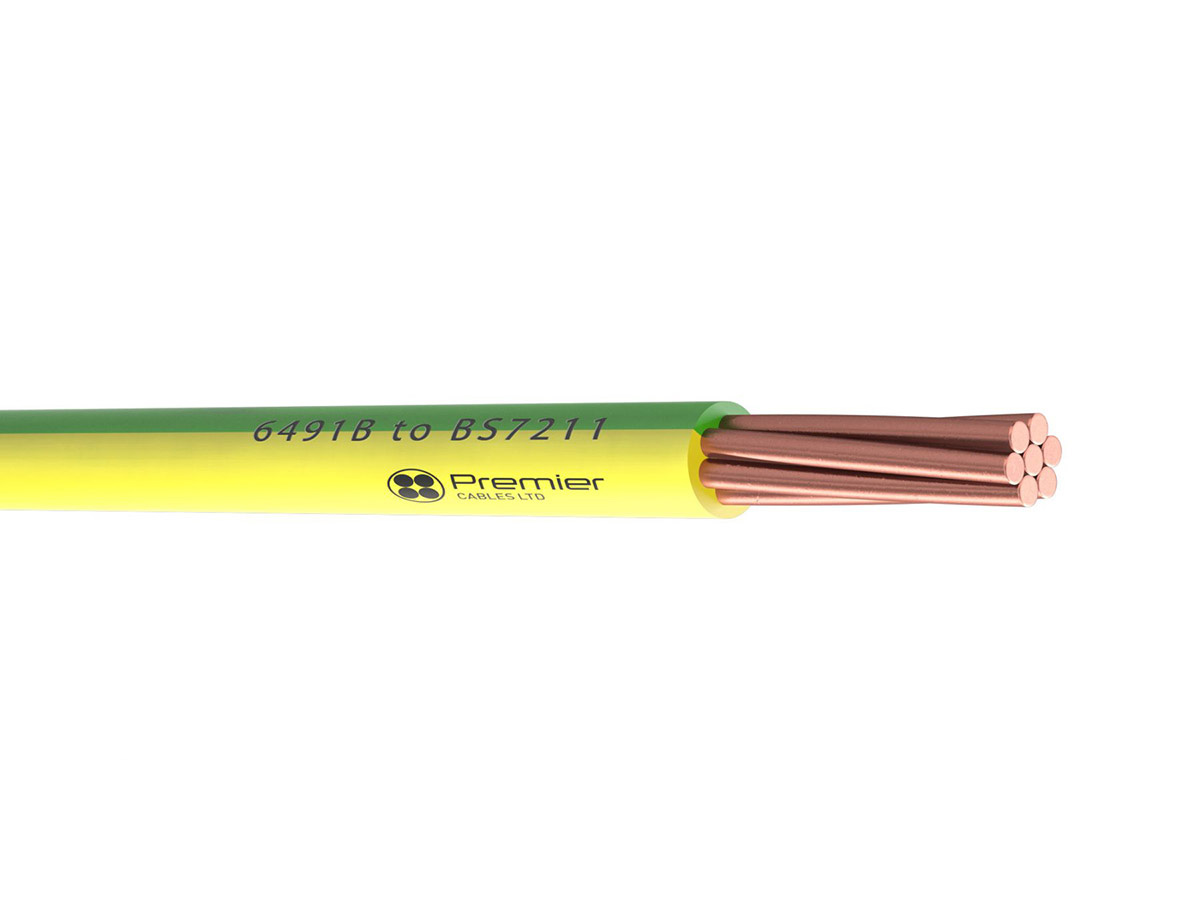

HO7V-R BS EN 50525-3-41( BS7211)
Technical Specification
| Conductor |
Class 2 stranded copper conductor to BS EN 60228, H07V-U: Class 1 solid copper conductor to BS EN60228 |
|---|---|
| Insulation |
LSZH (Low Smoke Zero Halogen) Type EI5 according to BS EN 50363 |
| Rated Voltage [V] |
450/750V |
| Temperature Rating |
-0oC to +90oC |
| Minimum Bending Radius |
10mm2 to 25mm2 – 5 x overall diameter, Above 25mm2 – 6 x overall diameter |
| Insulation Colour |
Red, Black, Blue, Yellow, White, Green/Yellow |
