Product Description

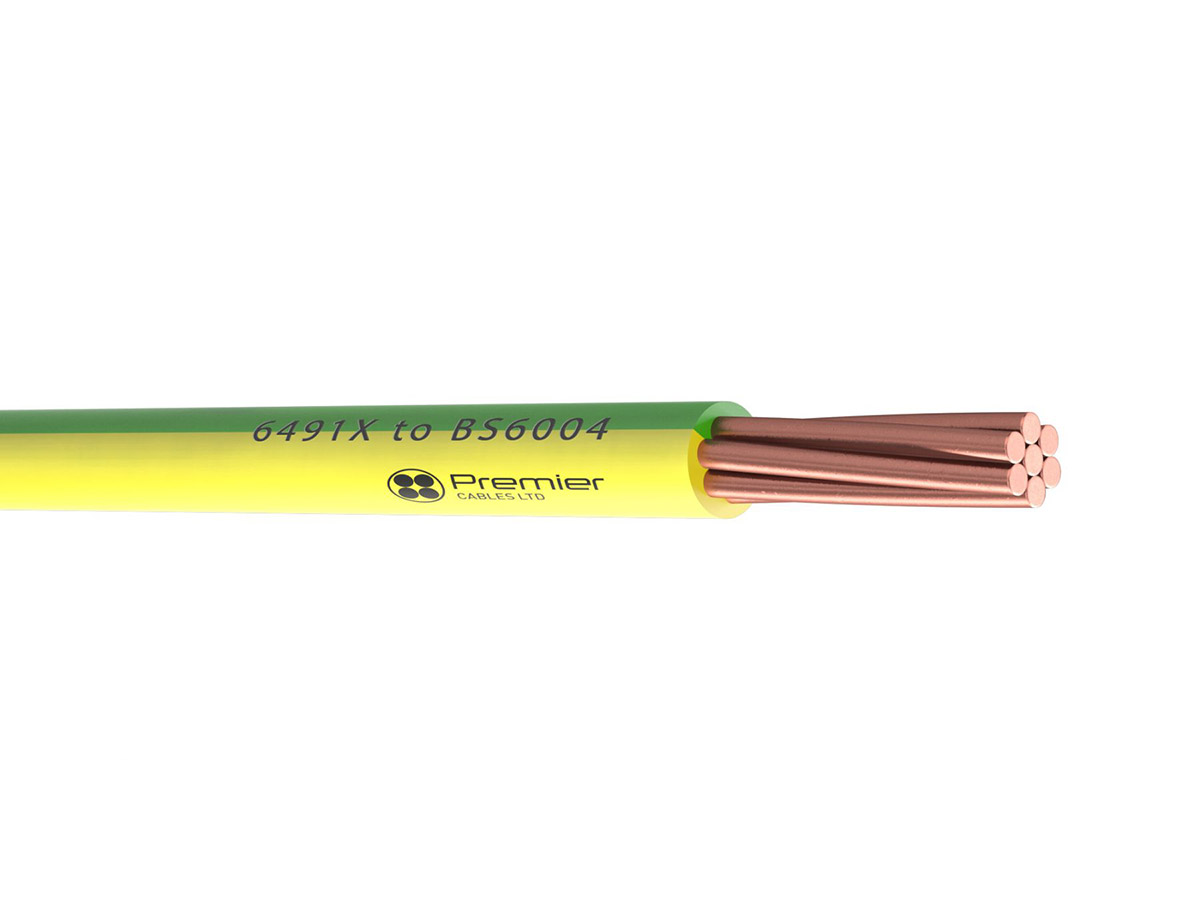

- HO7V-R/HO7V-U
- BS EN 50525-2-31( BS6004)
- BS EN/IEC 60332-1-2
Technical Specification
| Conductor |
Class 2 stranded copper conductor according to BS EN 60228 (previously BS 6360) |
|---|---|
| Insulation |
PVC (Polyvinyl Chloride) Type TM1according to BS EN 50363 |
| Rated Voltage [V] |
450/750V |
| Temperature Rating |
-15oC to +90oC |
| Minimum Bending Radius |
10mm2 to 25mm2 – 5 x overall diameter, Above 25mm2 – 6 x overall diameter, Up to 10mm2 – 4 x overall diameter |
| Insulation Colour |
Red, Black, Blue, Yellow, White, Green/Yellow |
