Product Description

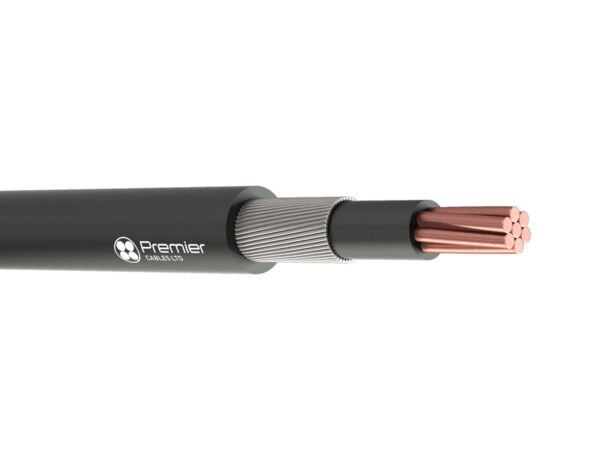

Single core cable with aluminium wire armour AWA (to prevent induced current in the armour). Designed for use in internal or external power networks. Suitable for direct burial.
BS5467, IEC 60502-1 IEC60332-1-2
Technical Specification
| Conductor |
Class 2 stranded copper conductor according to BS EN 60228 (previously BS 6360) |
|---|---|
| Insulation |
XLPE (Cross-Linked Polyethylene) |
| Bedding |
PVC (Polyvinyl Chloride) |
| Armour |
AWA (Aluminium Steel Wire Armour) |
| Sheath |
PVC (Polyvinyl Chloride) |
| Rated Voltage [V] |
600/1000v |
| Temperature Rating |
Flexed: -25°C to +90°C |
| Minimum Bending Radius |
1.5mm2 to 16mm2 – Fixed: 6 x overall diameter, 25mm2 and above – Fixed: 8 x overall diameter |
| Core Identification |
Brown or Blue |
