Product Description
Power and Control Cable, suitable for use both internally or externally. Primarily designed for fixed external wiring for energy supply. Suitable for direct burial
- VDE 0482-332-1-2
- VDE0276-603
- BS EN/IEC 60332-1

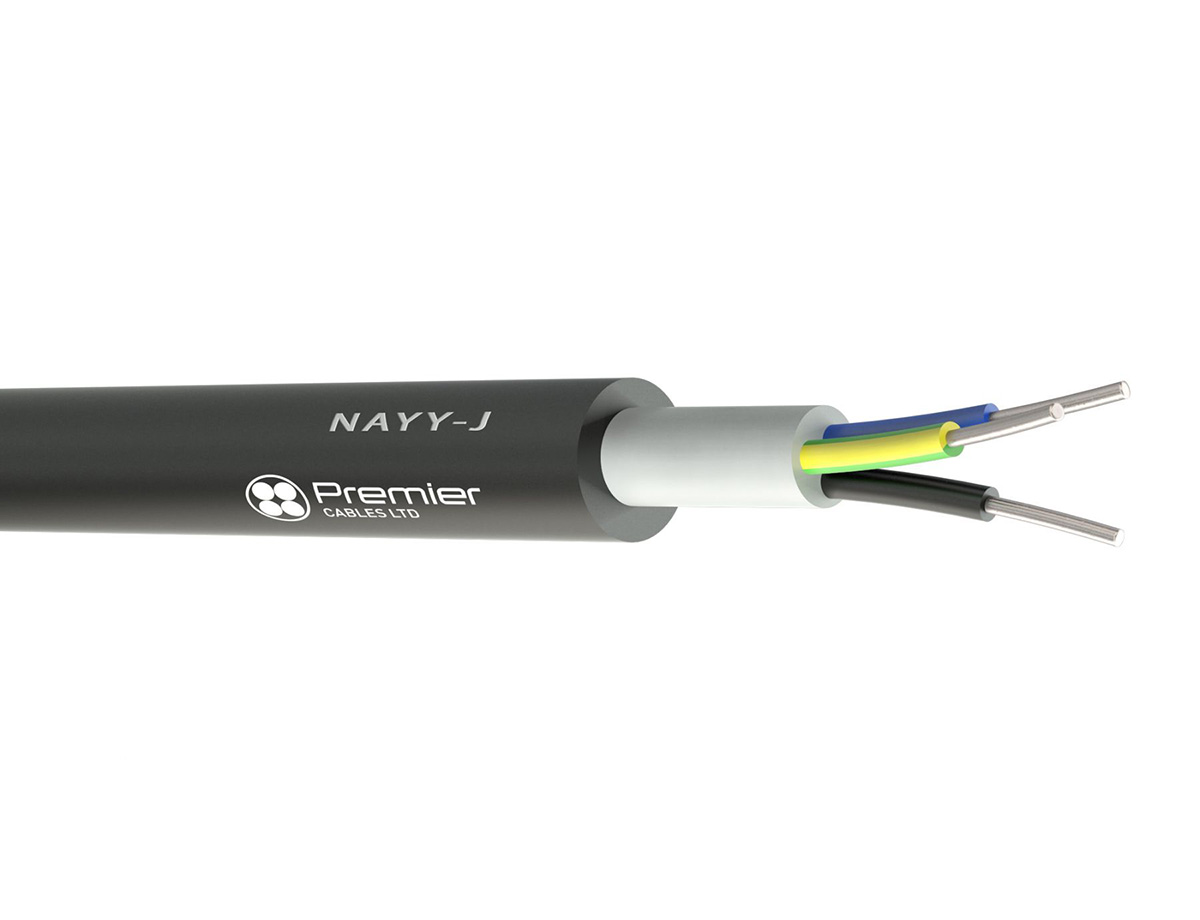

NAYY Aluminium Conductor Cable
Primarily designed for fixed external wiring for energy supply.
Technical Specification
| Conductor |
Aluminium, RE: Solid round conductor, RM: stranded round conductor, SM: sector-shaped conductor |
|---|---|
| Conductor Class |
Class 1 or 2 |
| Core Insulation |
PVC |
| Core Identification |
core marking: black, blue, brown, green/yellow |
| Stranding |
Cores twisted concentrically |
| Outer Sheath |
PVC |
| Rated Voltage [V] |
600/1000 |
| Testing Voltage [V] |
4000 |
| working temp fixed min/max [°C] |
-30°C up to +70 |
| working temp. moved min/max [°C] |
-5°C up to +50 |
| temp at conductor max |
+70 °C |
| Burning Behaviour |
IEC 60332-1 |
| Bending Radius |
12 x Ø RE |
| Temperature Moved |
-5° C to 50° C |
| Temperature Unmoved |
-30° C to 70° C |
