Product Description
Designed to avoid external high frequency interference, Screened Control Cables are flexible in design and application. Examples include control, signaling, measurement, motor and robotics.

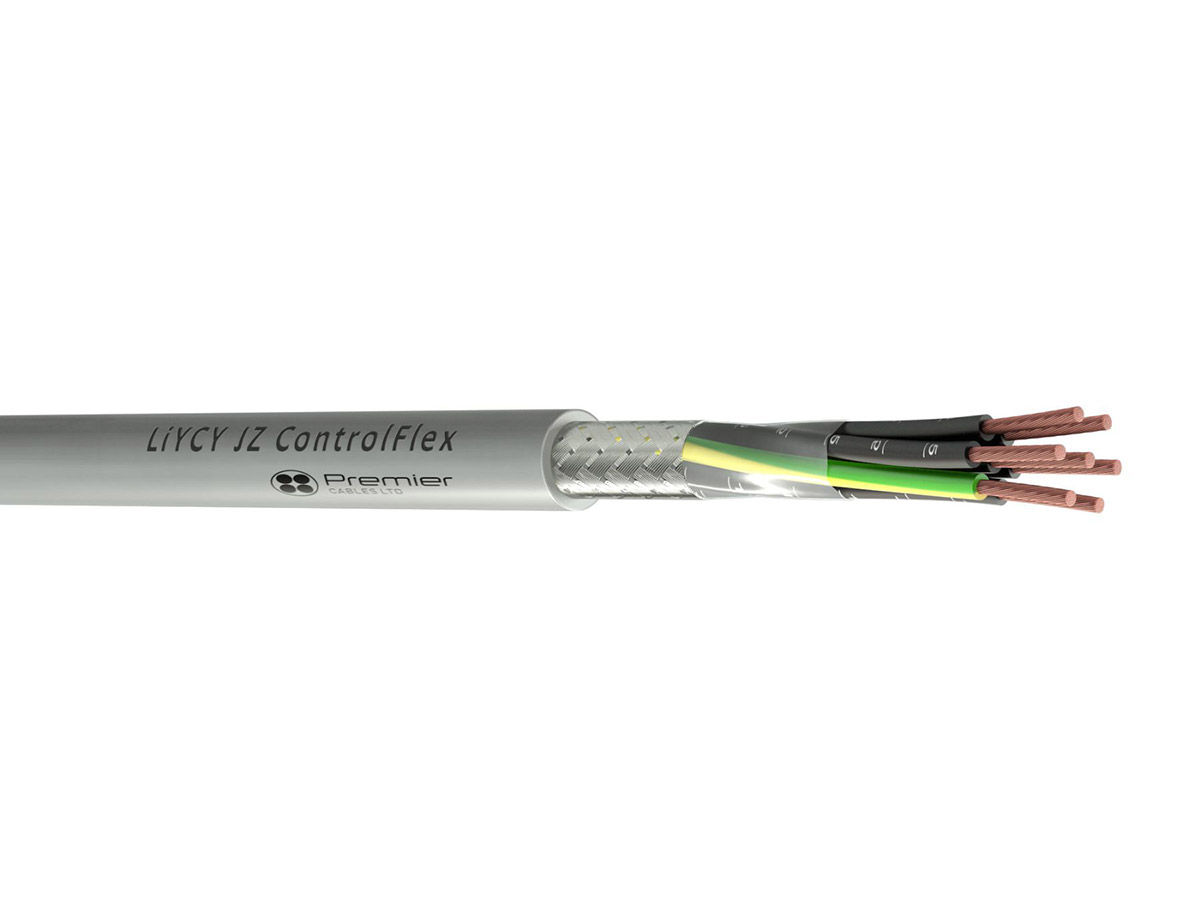

LiYCY Control Flexible Cable
Designed to avoid external high frequency interference, Screened Control Cables are flexible in design and application.
Technical Specification
| Conductor Material |
Copper, bare |
|---|---|
| Conductor Class |
Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core Insulation |
PVC |
| Core Identification |
Black Insulated Cores With White Number E + G/Y |
| Stranding |
Cores twisted in layers |
| Screen |
Tinned copper wire braid |
| Outer Sheath |
PVC |
| Sheath Colour |
Grey, RAL 7001 |
| Rated Voltage [V] |
300 / 500 |
| Testing Voltage [V] |
core/core 4000 V; core/shield 2000 |
| Insulation Resistance |
> 20 MΩ x k |
| Current-Carrying Capacity |
DIN VDE 0295 (see technical guidelines) |
| min bending radius fixed [x d] |
6 |
| min bending radius moved [x d] |
15 |
| working temp fixed min/max [°C] |
-40°C up to +80 |
| working temp. moved min/max [°C] |
-5°C up to +70 |
| temp at conductor max |
+150°C in case of short-circuit, +70°C in operation + 150°C in case of short-circuit |
| Burning Behaviour |
IEC 60332-1: self-extinguishing and flame-retardant |
