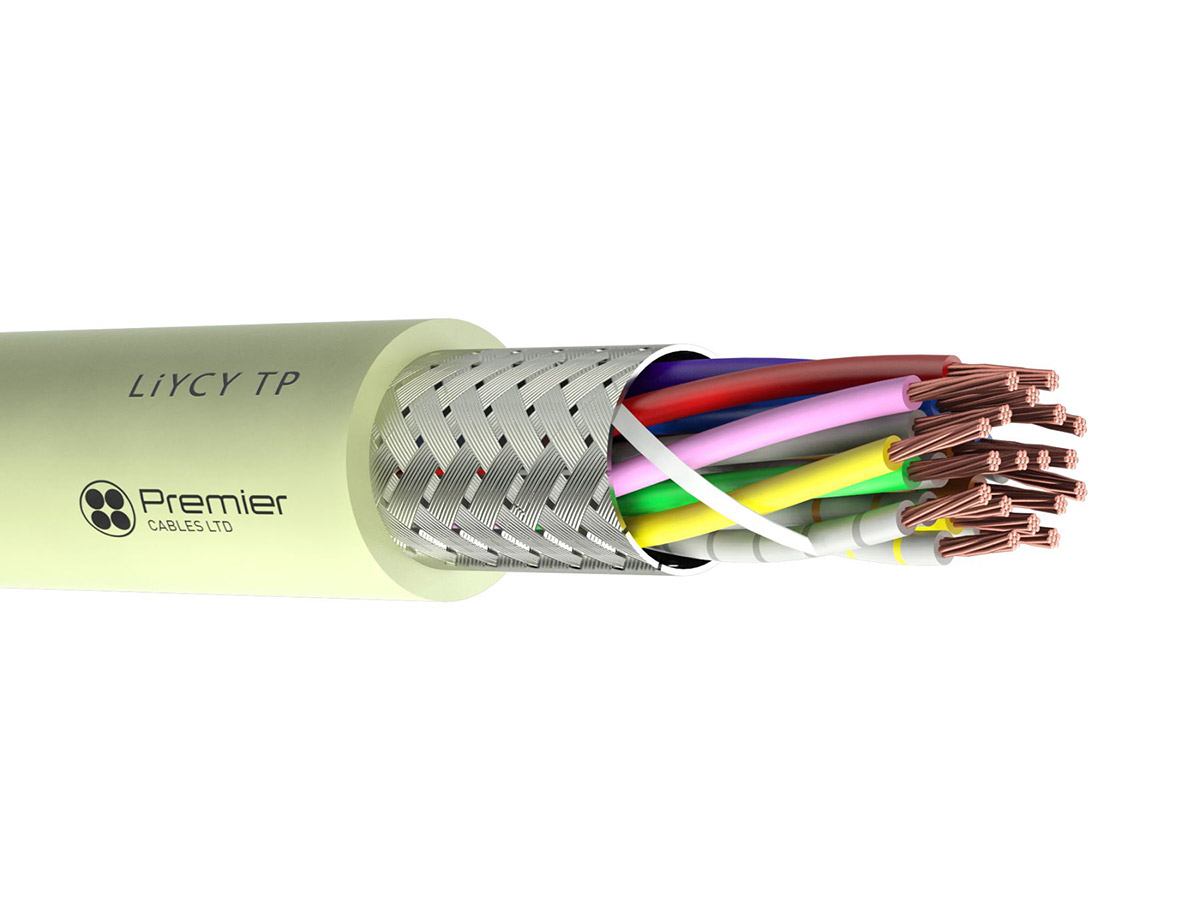

Product Description
Designed for wiring data systems with transmission rates up to 10 Megabits per second and is qualified for RS 422 and RS 485 interfaces. Suitable for for fixed installation or limited flexible use
Designed for wiring data systems with transmission rates up to 10 Megabits per second
and is qualified for RS 422 and RS 485 interfaces.
Designed for wiring data systems with transmission rates up to 10 Megabits per second and is qualified for RS 422 and RS 485 interfaces. Suitable for for fixed installation or limited flexible use
Conductor Material |
Copper, bare |
---|---|
Conductor Class |
Class 5 acc. to DIN VDE 0295 or IEC 60228 |
Core Insulation |
PVC |
Core Identification |
1,0 to 10 mm² : black cores with continuous figure imprint in white, Cross sections from 0,14 to 0,75 mm² coloured cores acc. to DIN 47100 |
Stranding |
Cores twisted in layers |
Screen |
Tinned copper wire braid |
Outer Sheath |
PVC |
Sheath Colour |
Grey, RAL 7001 |
Rated Voltage [V] |
300 / 500 |
Testing Voltage [V] |
1200 / 1500 |
Insulation Resistance |
> 20 MΩ x k |
Current-Carrying Capacity |
DIN VDE 0295 (see technical guidelines) |
min bending radius fixed [x d] |
> 20mm ∅: 10, bis 12mm ∅: 5 x d, bis 20mm ∅: 7.5 x d |
min bending radius moved [x d] |
> 20mm ∅: 20, bis 12mm ∅: 10 x d, bis 20mm ∅: 15 x d |
working temp fixed min/max [°C] |
-30°C up to +80 |
working temp. moved min/max [°C] |
-5°C up to +70 |
Burning Behaviour |
IEC 60332-1: self-extinguishing and flame-retardant |
Approvals |
VDE 0812 |
Temperature Moved |
-5° C to 70° C |
Temperature Unmoved |
-40° C to 80° C |
