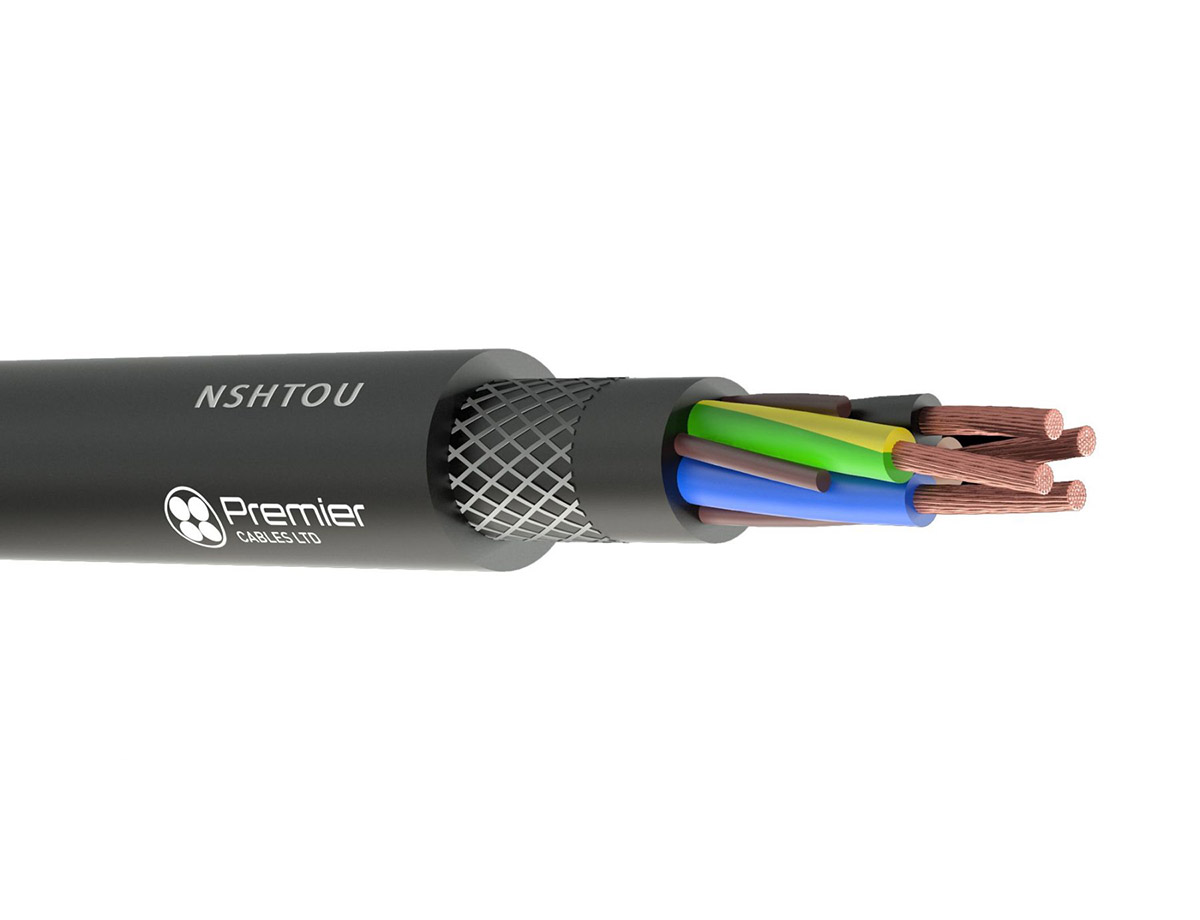

Product Description
Suitable for applications requiring frequent winding and unwinding. For use in hoists, transporting machines and conveyors, in power chains, as drum and drag cables.
VDE0250, BS EN/IEC 60811-2-1, BS EN/IEC 60332-1-2
Technical Specification
| Conductor |
Class 1 solid, Class 2 stranded or Class 5 copper conductor according to BS EN 60228 (previously to 6360) |
|---|---|
| Insulation |
Rubber compound to VDE 0207 part 20 |
| Filler |
EPR ( Ethylene Propylene Rubber) with TextileRubber compound to VDE 0207 part 21 |
| Bedding |
CPE (Chlorinated Polyethylene) rubber compound |
| Braiding |
Polyester Braid |
| Sheath |
Rubber compound to VDE 0207 part 21 |
| Rated Voltage [V] |
600/1000v |
| Temperature Rating |
Fixed: -40°C to +60°C, Flexed: -25°C to +60°C |
| Minimum Bending Radius |
Fixed: 4 x overall diameter, Flexed: 5 x overall diameter |
| Sheath Colour |
Black |
