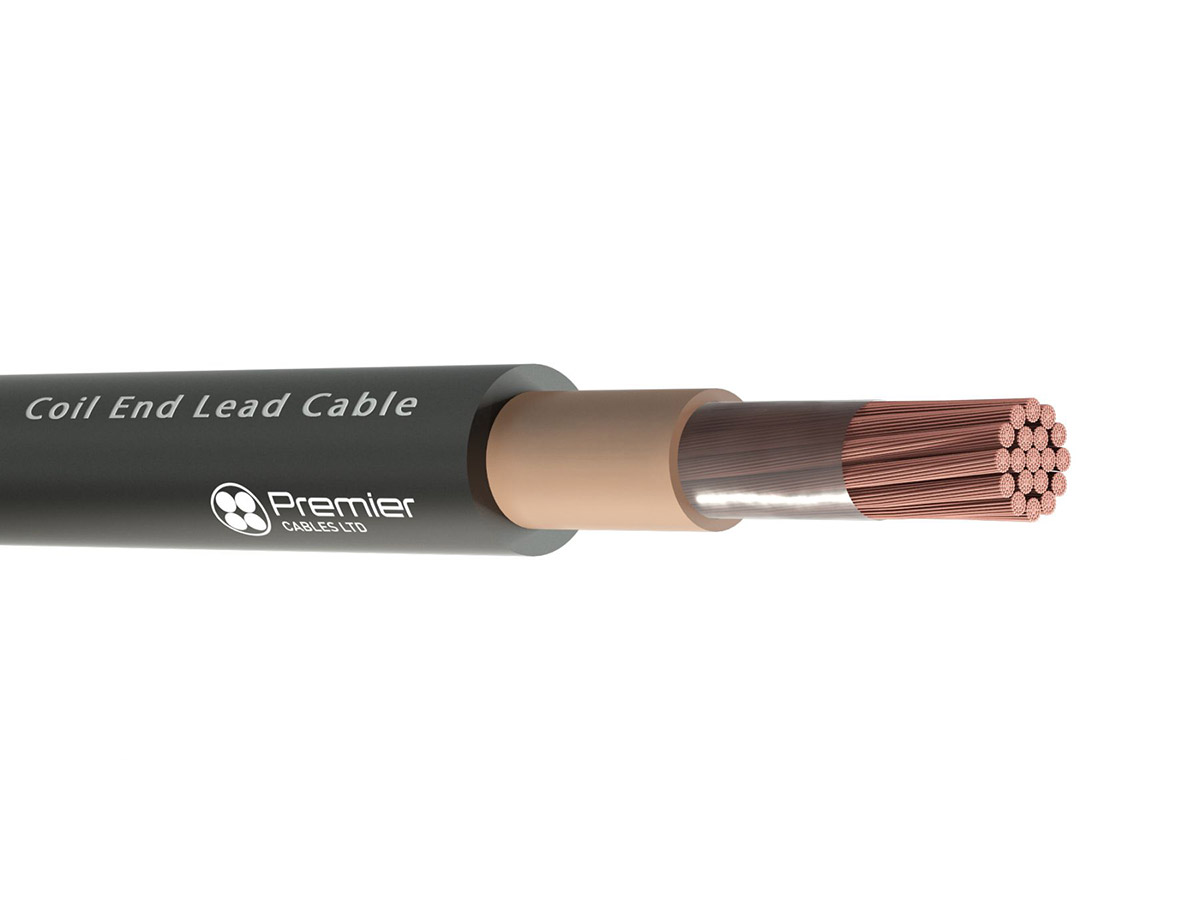

Product Description
For a flexible permanent connection to windings motors, generators, transformers, circuit breakers and actuators. Other applications include vehicle wiring.
Technical Specification
| Conductor |
Class 5 flexible tinned copper conductor according to BS EN 60228 (previously BS 6360) |
|---|---|
| Separator |
PET (Polyester Tape) |
| Insulation |
EPR-HOFR (Ethylene Propylene Rubber – Heat and Oil Resistant and Flame Retardant) |
| Sheath |
CPE (Chlorinated Polyethylene) rubber compound |
| Rated Voltage [V] |
Type 4A:300/500V, Type 4C: 600/1000V, Type 4D: 1.9/3.3kV, Type 4E: 3.8/6.6kV, Type 4F: 6.35/11kV |
| Temperature Rating |
Fixed: -40°C to +90°C, Flexed: -30°C to +90°C |
| Minimum Bending Radius |
Fixed: 4 x overall diameter, Flexed: 6 x overall diameter |
| Sheath Colour |
Black |
