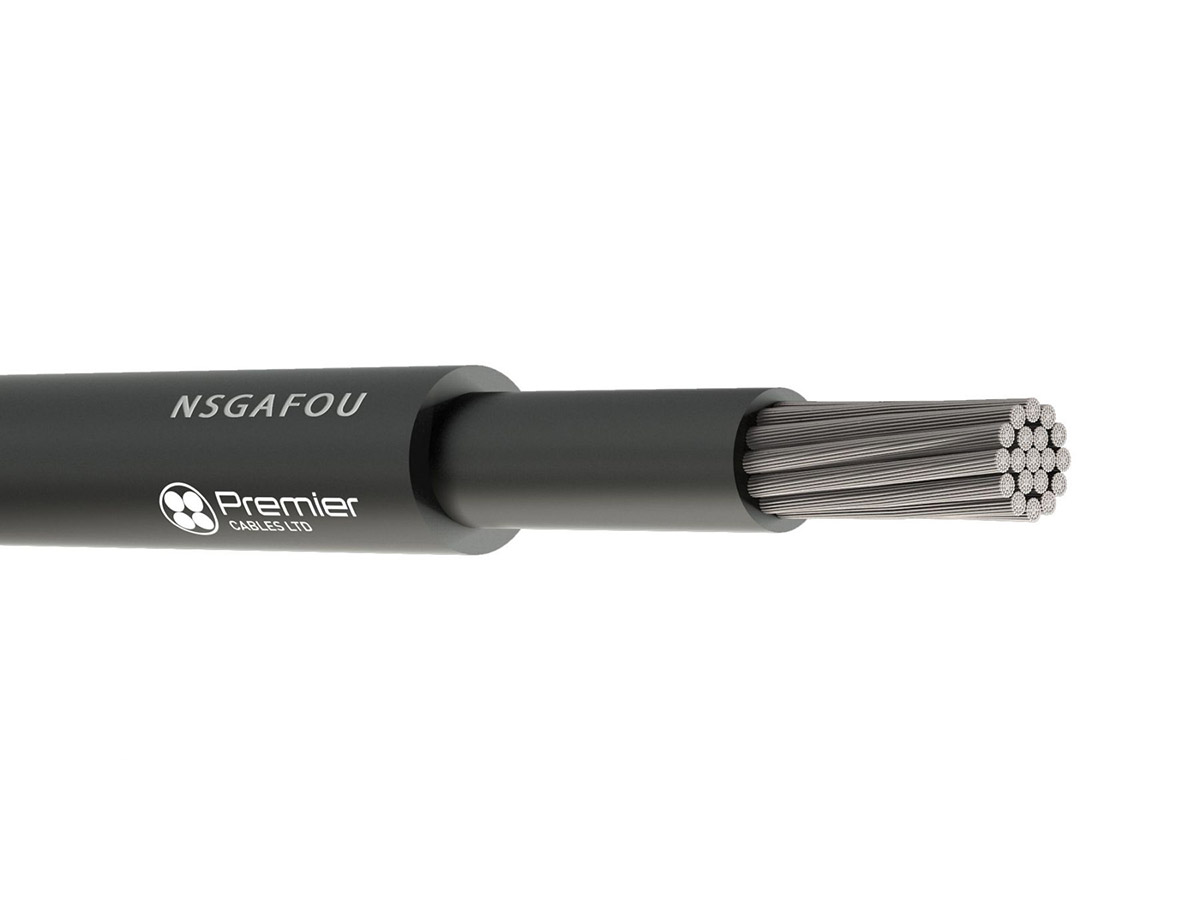

Product Description
Flexible power cables suitable for use on board of trains underground coaches & Trams in dry rooms, pipes and closed installation ducts, for fixed installation.
This cable is flame retardant and oil resistant.
Technical Specification
| Conductor |
Class 5 flexible tinned copper conductor according to BS EN 60228 (previously BS 6360) |
|---|---|
| Insulation |
EPR 3G13PET (Polyester Tape) |
| Sheath |
Polychloroprene 5GM3 |
| Rated Voltage [V] |
1800/3000 (3600) or 3600/6000 (7200) |
| Temperature Rating |
Fixed: -40°C to +90°C, Flexed: -25°C to +90°C |
| Minimum Bending Radius |
Fixed: 5 x overall diameter, Flexed: 5 x overall diameter |
| Sheath Colour |
Black |
