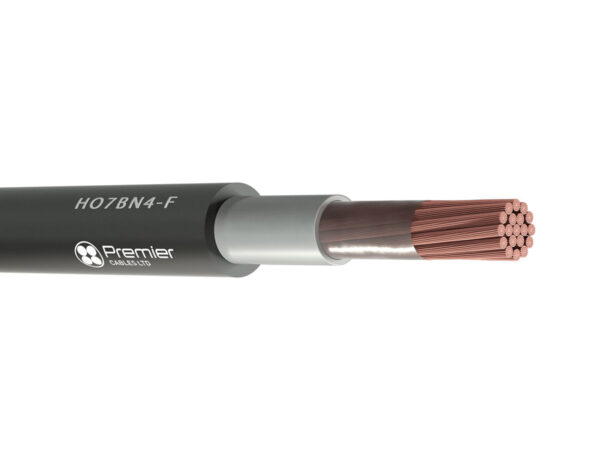

Flexible rubber cable with high temperature resistance suitable for most industrial applications. Designed primarily as a trailing cable for use in the supply of energy for portable and mobile equipment.
BS EN 50525-2-21 (previously BS 7919, CENELEC HD22.12. S1/A1), BS EN/IEC 60332-1-2, CEI 20-19/12
| Conductor |
Class 5 flexible tinned copper conductor according to BS EN 60228 |
|---|---|
| Insulation |
EPR (Ethylene Propylene Rubber)Type EI7 according to BS En 50363 |
| Sheath |
HOFR CSP (Heat and Oil Resistant and Flame Retardant Chlorosulphonated Polythylene) according to BS EN 50363 |
| Rated Voltage [V] |
450/750V |
| Temperature Rating |
max. conductor temperature in service 85°C |
| Minimum Bending Radius |
Above 25mm2 – Flexed: 8 x overall diameter, Fixed: -40oC to +90oC, Flexed: -15oC to +90oC, Up to 25mm2 – Flexed: 6 x overall diameter |
| Sheath Colour |
Black |
