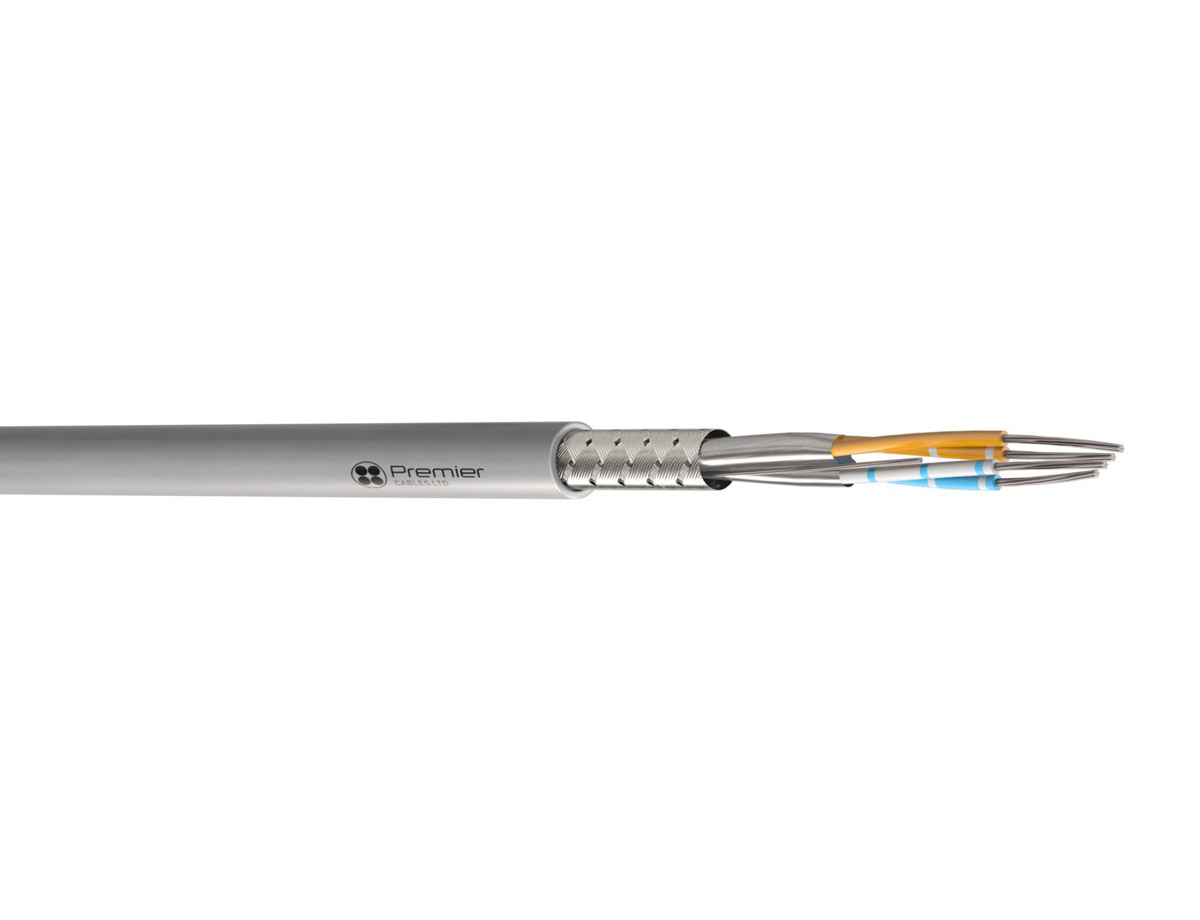

UL1581, UL758 Generally to Belden 9843 LSZH. EIA RS485. For use in data and audio applications including Controller Area Networks (CAN open solutions) which enable the communication between devices of different manufacturers. Low smoke Zero Halogen jacket for installations where fire, smoke emissions and toxic fumes can cause a potential risk to life.
| Conductor |
Class 2 stranded tinned copper conductor |
|---|---|
| Insulation |
PE Polyethylene |
| Screen |
Screen 1: AI/PET (Aluminium foil/Polyester tape), Screen 2: TCWB (Tinned Copper Wire Braid) |
| Sheath |
PVC (Polyvinyl Chloride) |
| Sheath Colour |
Grey |
| Rated Voltage [V] |
300 |
| Temperature Rating |
Fixed: -20°C to +80°C |
| Minimum Bending Radius |
10 x overall diameter |
| Core Identification |
e White/Green + Green/White, White/Blue + Blue/White, White/Orange + Orange/White |
