Product Description

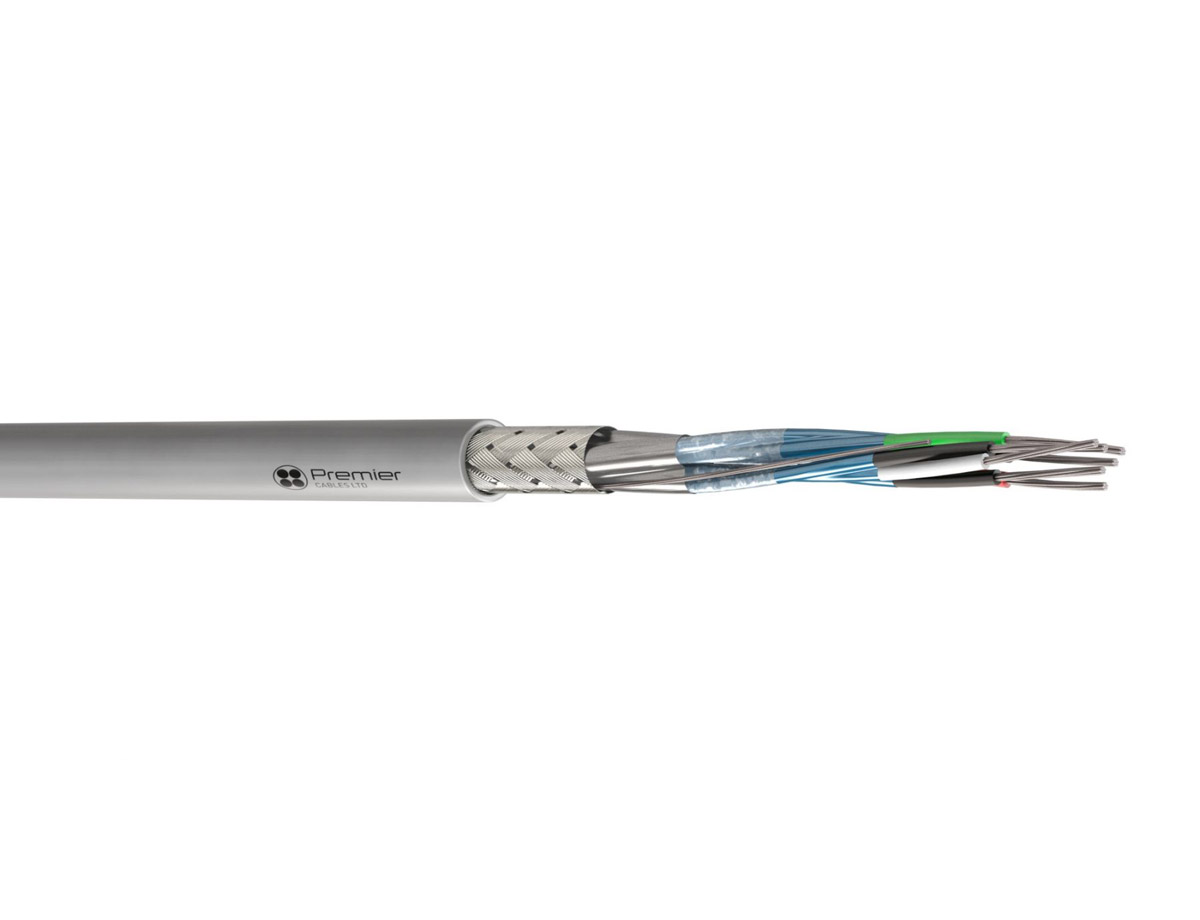

Individual / Overall foil and braid screened cable for RS232 and RS422 applications. PVC or Low Smoke & Fume.
Low Capacitance Cable to EIA RS 232, RS 422, UL 1581
Individual / Overall foil and braid screened cable for RS232 and RS422 applications. PVC or Low Smoke & Fume.
Low Capacitance Cable to EIA RS 232, RS 422, UL 1581
Conductor |
Class 2 stranded tinned copper conductor – 24 AWG – 2 pair |
---|---|
Insulation |
FPE Foam Polyethylene |
Screen |
Individual & Collective Aluminium foil / polyester tape – Tinned Copper Wire Drain |
Sheath |
Tinned Copper Wire Braid |
Rated Voltage [V] |
300 |
Temperature Rating |
Fixed: -40ºC to +60ºC |
