Product Description

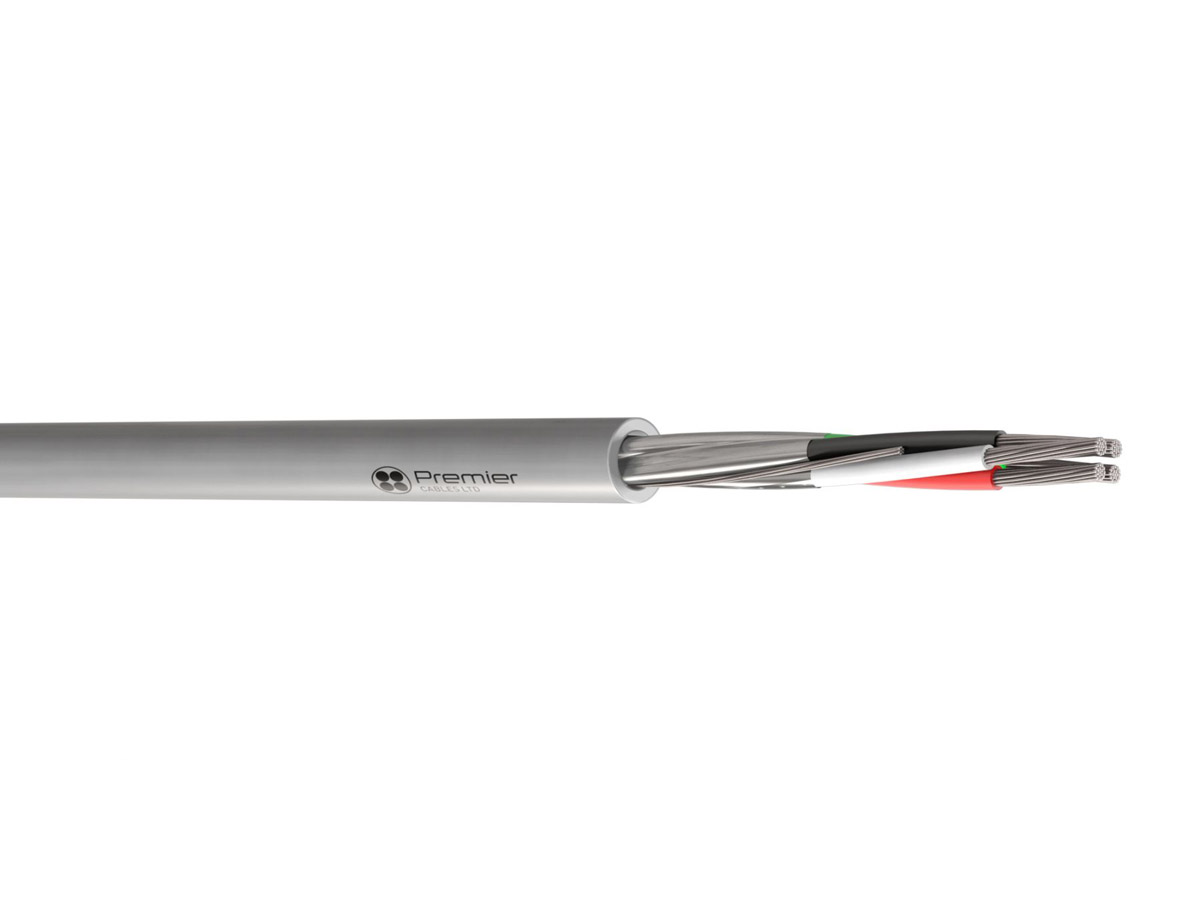

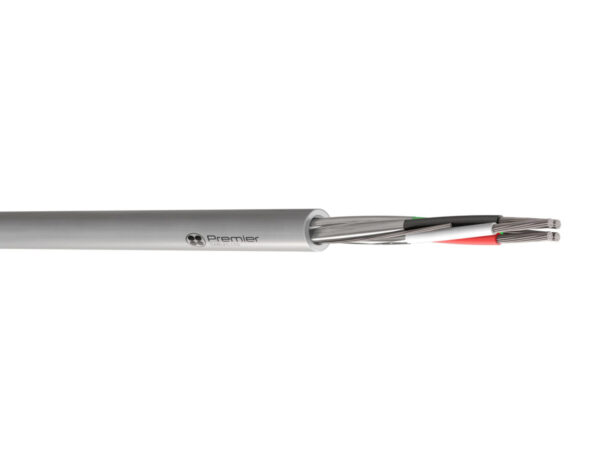

Generally, to Belden 9418, RS232. 18/awg overall screened multicore RS232 data cable for instrumentation and sound applications.
Technical Specification
| Conductor |
Tinned copper 18/AWG(19) |
|---|---|
| Insulation |
PVC (Polyvinyl Chloride) |
| Screen |
Aluminium foil |
| Drain Wire |
Tinned copper |
| Sheath |
LSF or LSZH (Low Smoke Zero Halogen) |
| Sheath Colour |
Grey |
| Rated Voltage [V] |
300 |
| Temperature Rating |
Fixed: -20°C to +80°C |
| Core Identification |
Black / White / Red / Green |
