Product Description
ISO/IEC 11801, EIA/TIA 568C.21 Gigabit per second, Foil Screened 4 twisted pair,
high performance cable for a frequency range up to 100MHz.

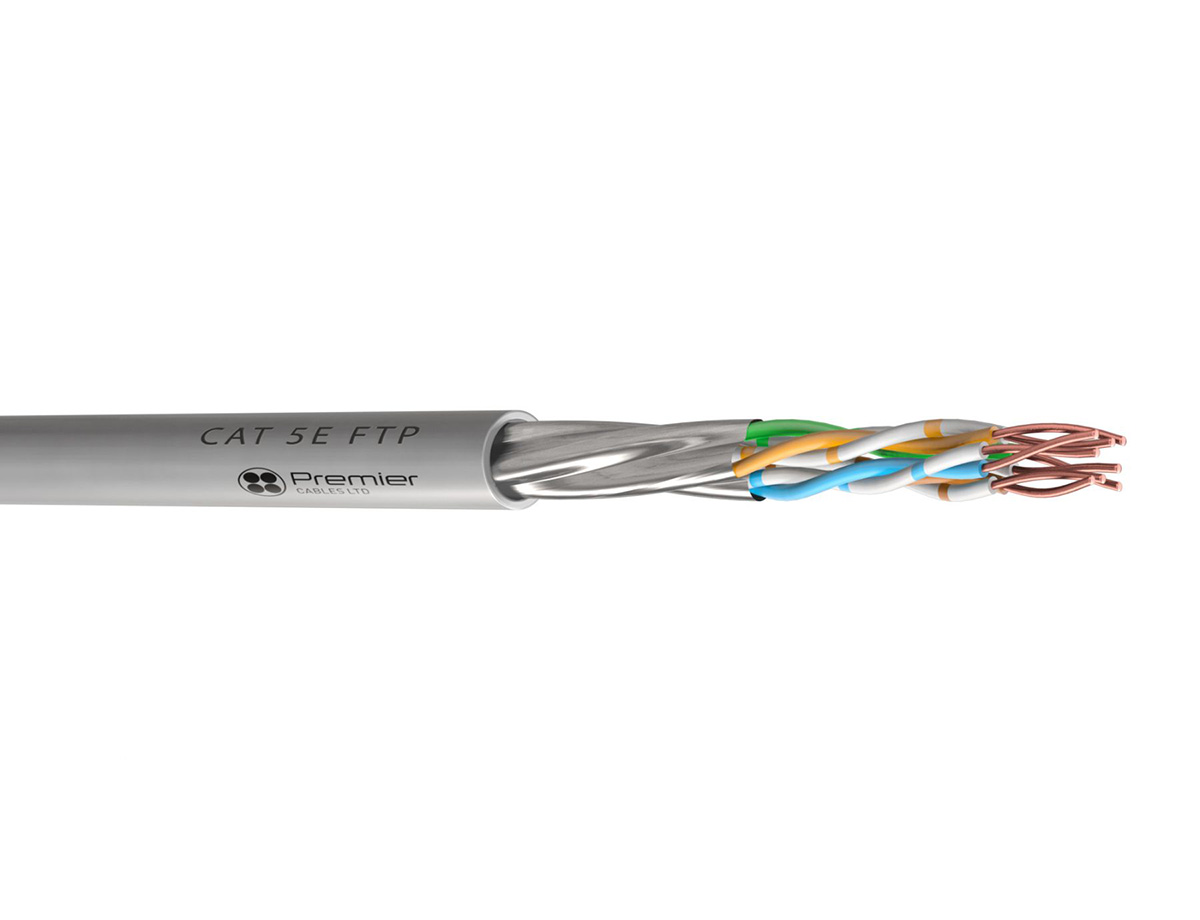

CAT 5E FTP
Gigabit per second, Foil Screened 4 twisted pair, high performance cable for a frequency range up to 100MHz.
Technical Specification
| Conductor |
Class 1 solid copper conductor (4 pair) |
|---|---|
| Insulation |
HDPE (High Density Polyethylene) |
| Drain Wire |
Tinned copper |
| Screen |
Aluminium foil |
| Sheath |
LSZH Purple, PE ( duct grade ) Black, PVC Grey |
| Rated Voltage [V] |
300 |
| Nominal O/D |
6mm |
| Core Identification |
Pair 1: Blue White/Blue, Pair 2: Orange White/Orange, Pair 3: Green White/Green, Pair 4: Brown White/Brown |
| Temperature Rating |
-20°C to +75°C for PVC, +50°C for LSZH & PE |
