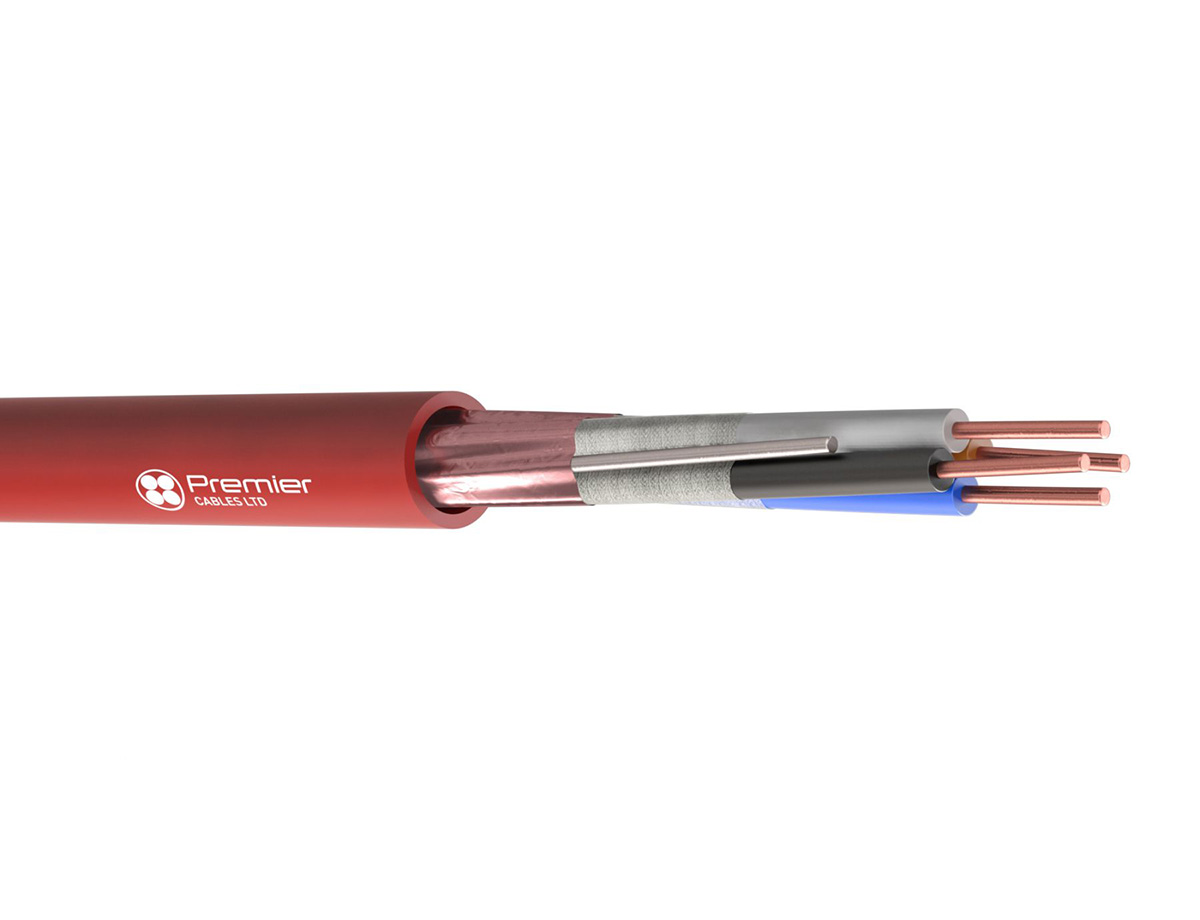

Product Description
- Flame retardant to BS5839-1:2003 and IEC 60332-3 CAT CWZ, BS7629-1 1997.
- Acid gas emission to BS EN 50267 (IEC60754), smoke emission to BS EN 50268 (IEC 61034)
- Flame propagation: BS EN 50265, BS EN 50266 (IEC 60332).
Technical Specification
| Conductor |
1.5mm2 – 2.5mm2: Class 1 solid conductor according to BS EN 60228, 4mm2: Class 2 stranded conductor according to BS EN 60228 |
|---|---|
| Separator |
Mica/glass fire barrier tape |
| Insulation |
LSZH (Low Smoke Zero Halogen) |
| Screen |
Aluminium/Polyester Tape |
| Sheath |
LSZH (Low Smoke Zero Halogen) |
| Rated Voltage [V] |
300 / 500 |
| Operating Temperature |
10°C to +90°C |
| Minimum Bending Radius |
6 x overall diameter |
| Core Identification |
2 core: Blue Brown, 3 core: Brown Black Grey, 4 core: Brown Black Grey Blue |
| Sheath Colour |
Red or White |
